Large-scale thread machining on whirling machines is decided less by the cutting insert than by everything behind it. On a long ball screw or rotor shaft, the thread is produced in a single pass by a ring of inserts that spins fast around a slowly rotating workpiece, and every micrometre of that geometry passes through the machine's transmission chain: the feed drive that carries the axial motion, the supports that hold a slender part steady, and the drive that spins the whirling head. This article explains how each of those transmission elements shapes accuracy, surface finish and tool life in thread whirling, what the published measurements actually say, and what to check on the machine before a long job is committed to it.
If you are new to the process itself, start with Whirling Machine 101 for the kinematics and A Guide to Thread Whirling Technology for tooling basics; this page stays on the machine side of the process.
Key takeaways
- In thread whirling the full thread profile is cut in one pass by a ring tilted to the helix angle, so the machine's transmission chain — not the insert — is what stands between a good thread and a scrapped screw (Sandvik Coromant).
- The static and dynamic stiffness of a ball screw feed drive changes with carriage position over the stroke, and the support arrangement decides how it changes (Feng et al., 2023).
- Interrupted whirling cuts cycle a CBN edge through heating and cooling; published microscope work identifies thermal cracking as the main wear mechanism (Malakizadi et al., 2013).
- A directly-driven whirling head was developed specifically because belt-driven live tooling limits cutting speed and wears carbide tools (Soshi et al., 2018).
- Measured whirling experiments in peer-reviewed work ran at cutting speeds of 88.7–229.2 m/min and produced flank roughness of Ra 0.5–3.2 µm (Merticaru et al., 2022).
Table of Contents
- Why the Transmission System Sets the Limits of Thread Whirling
- Feed Drive Rigidity and Pitch Accuracy in Whirling Milling
- Ball Screw Workpieces: Support, Heat and Long-Part Stability
- Whirling Head Drive Dynamics and Tool Life
- Cutting Parameters from Measured Data
- Machine Acceptance and What to Specify
- A Transmission Checklist for Long Thread Machining
- References
Why the Transmission System Sets the Limits of Thread Whirling
Thread whirling is similar to thread milling, with one geometric difference that matters here: the inserts sit on the inside of a cutting ring that rotates around the workpiece and cuts the full thread in one pass, with the ring tilted to the thread's helix angle (Sandvik Coromant). Sandvik Coromant's threading knowledge base lists the process benefits that follow — high-quality threads on long and slender components without bending or vibration, and accurate threads produced by tilting the ring to the helix angle — and names feed screws and worm gears alongside medical bone screws as typical parts.
Every one of those benefits is conditional on the machine. A single-pass process has no second pass to clean up: whatever the feed drive does to the pitch, whatever the supports let the workpiece do under interrupted cutting, and whatever the head drive does to the cutting speed shows up directly on the finished thread. That is the reason transmission-system behaviour, rather than insert grade selection, is where long-part whirling jobs are won or lost.

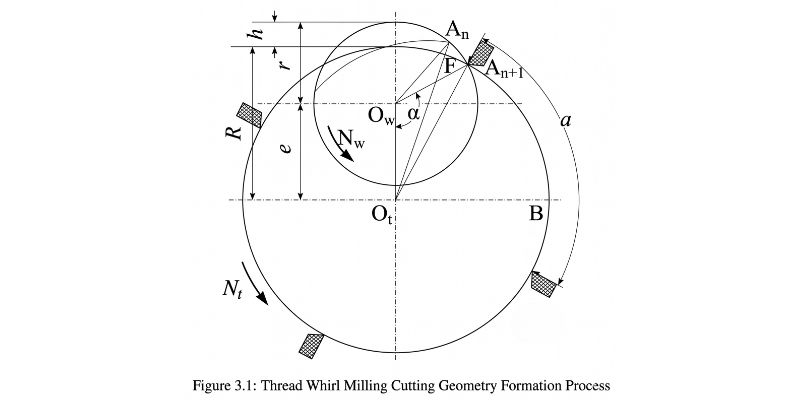

The kinematics make the dependency explicit. Merticaru et al. (2022) model the whirled surface as the compound result of the cutting edges of the whole set of cutters in the head, with the thread generated by the combined rotary speed of the whirling head, the rotary speed of the workpiece and the axial feed. Their experiments threaded C45 steel samples on a lathe fitted with four-cutter whirling equipment — a bench-scale confirmation that the machine platform, not a special machine class, carries the process. When any element of that platform drifts, the error lands on the thread.
Feed Drive Rigidity and Pitch Accuracy in Whirling Milling

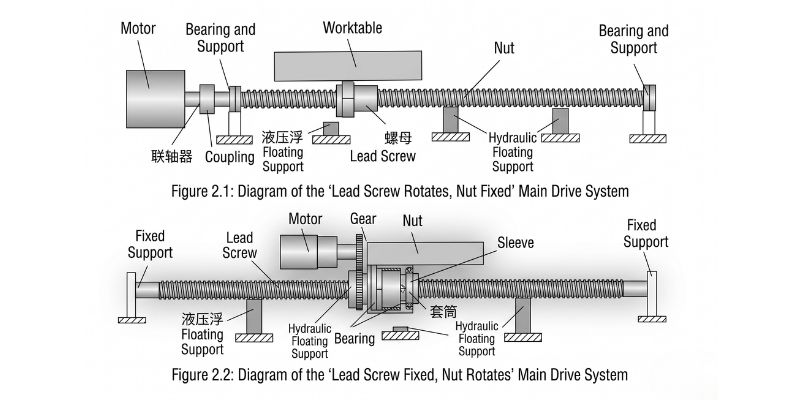

In whirling milling, the pitch is set by the axial feed per workpiece revolution, which means thread pitch accuracy is a direct readout of feed drive behaviour. Most feed drives on machine tools — including the whirling machines that cut them — are themselves ball screw drives, so their published stiffness behaviour is doubly relevant: it is both the mechanism that moves the cut and the class of part being cut.

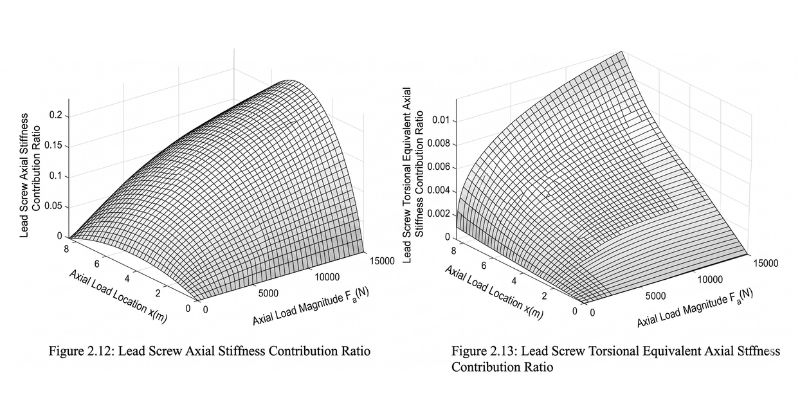

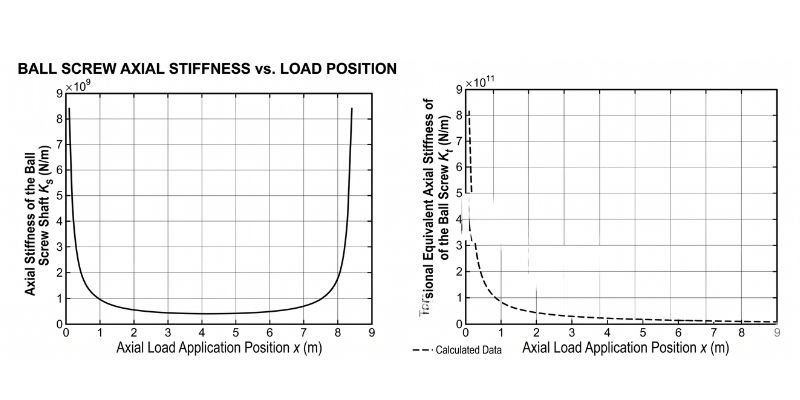

A 2023 study of ball screw feed systems by Feng et al. built a lumped-parameter dynamic model of the drive and tracked static and dynamic stiffness across the full travel range under different support arrangements. Two findings carry over to whirling work directly. First, the stiffness of a ball screw feed system is not a constant: it varies with carriage position over the stroke. Second, the support arrangement decides the shape of that variation — with both ends fixed, stiffness first falls and then rises again as the stroke increases in the negative direction, while a fixed-floating arrangement declines continuously, and the fixed-fixed drive's dynamic stiffness is more sensitive to the mass and position of the workpiece it carries, meaning larger natural-frequency shifts.
For pitch, the practical consequence is that a feed drive checked at one position is not a feed drive characterised. Pitch error measured at mid-stroke says nothing about the ends of travel, and a long workpiece adds a moving mass that changes the drive's dynamic response as the cut proceeds. Shops that whirling-mill long screws with tight pitch requirements therefore verify pitch over the full machining length, in the supported configuration the job will actually run, with the workpiece mass in place — not from a datasheet single value.
The same logic applies when the feed drive is the specification being bought. Feed-drive behaviour interacts with thread-control settings, which is covered from the programming side in CNC Whirling Machine Thread Control Guide; machines in the compact high-precision class such as the MX500 high-precision whirling machine are specified as complete transmission platforms for exactly this reason.
Ball Screw Workpieces: Support, Heat and Long-Part Stability
Ball screws are the archetypal whirling workpiece: long, slender, and ground to tolerances that used to require grinding. Song et al. (2022) studied whirl hard milling of precision ball screws — the hardened-cut variant of whirling milling — and positioned it explicitly against grinding as a thread-making route for the "core key parts" of high-end equipment, obtaining the temperature field distribution and thermal deformation behaviour of the screw during whirling hard milling through virtual simulation combined with field experiments. Two implications follow for the transmission system.

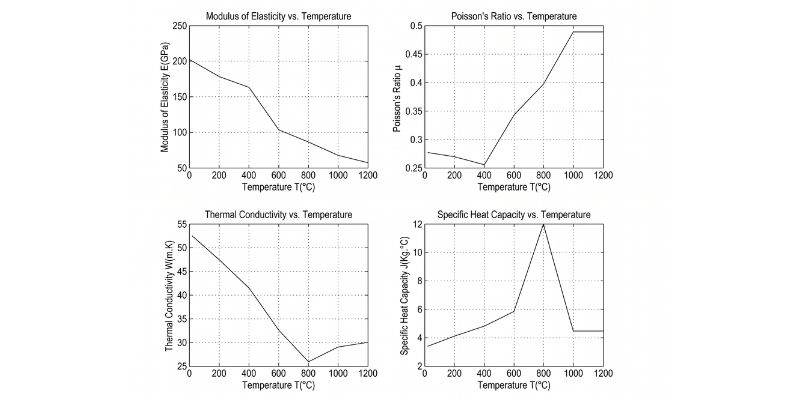

The first is thermal. A single-pass hard milling cut puts heat into a long screw, and Song et al.'s simulation-plus-experiment approach exists because that heat becomes dimensional error along the thread. The machine's contribution is steady-state behaviour: consistent spindle and feed motion, and support elements that do not add their own heat or drift over a multi-hour cut. Heat management on the workpiece side is inseparable from the support and drive elements that carry the part.
The second is support. A slender screw whipping between supports cannot hold a thread form. Sandvik Coromant's guidance for the process names the ability to machine high-quality threads on long and slender components "without the risk of bending or vibrations" as the defining benefit of whirling, and that ability is a property of the support layout, not the insert. Where a workpiece is thin-walled or marginally stiff, published research shows how much support design can buy: Ma et al. (2017) designed a magnetorheological fluid flexible fixture that suppresses machining vibration in milling, modelling the fixture constraints and damping factor as crucial elements of the workpiece's dynamic response and validating the stability improvement in machining tests. The transferable principle for whirling is that damping added at the support — not just stiffness — changes what the cutting force can excite.
For routing an actual screw through turning, whirling, grinding and hardening, see Ball Screw Manufacturing Process; application notes for this part family are collected under Ball Screws, and long-envelope machines such as the PH80-2000 CNC whirling machine exist because support spacing over metres is a machine-level decision.
Whirling Head Drive Dynamics and Tool Life

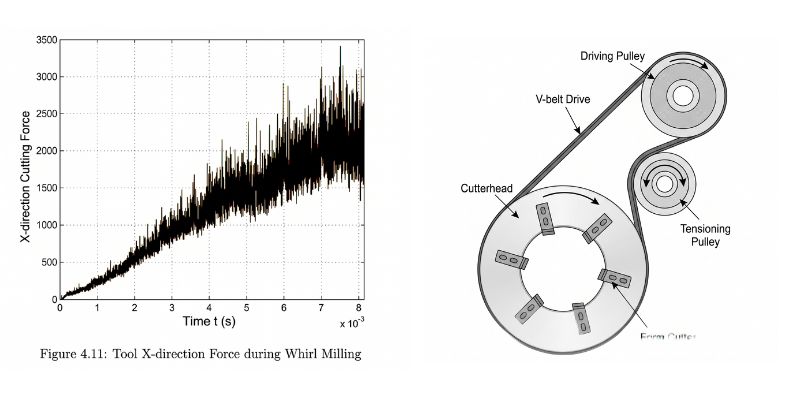

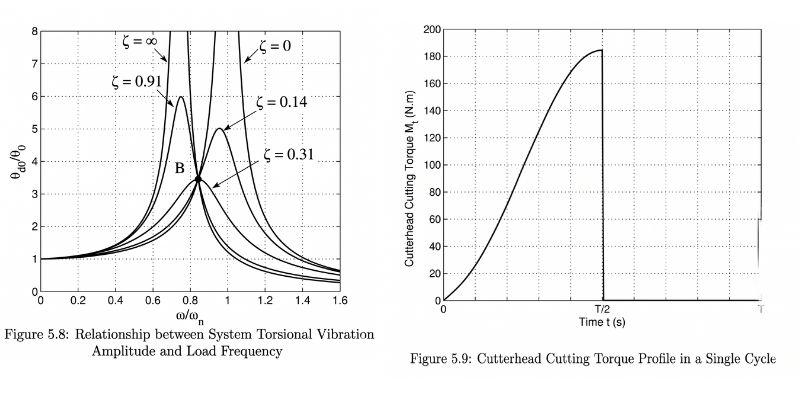

The whirling head is the fastest-rotating element in the chain, and its drive determines both the cutting speed available and how that speed is delivered. Merticaru et al. (2022) record the industry context in their literature review: although live tooling drives can provide speeds from 5000 to 10,000 rpm, thread whirling tends to require only 2000 to 3000 rpm. Their own experiments ran the head far below that band — 614 to 1241 rpm against workpiece speeds of 2.4 to 3.76 rpm — which places real whirling work well inside the range where drive dynamics, not maximum speed, is the design question.
How the head is driven matters. Soshi et al. (2018) developed a direct motor driven thread whirling unit for a Swiss-type CNC lathe precisely because conventional live-tooling drives limit the process: with carbide tools, tool wear and low cutting speed cap productivity on titanium medical screws, and the directly-driven unit was built to run low-binder-content CBN and polycrystalline diamond tooling as a cost-effective alternative. A direct drive removes belt compliance from the head's torsional path — the same transmission element a whirling machine builder is choosing between when they specify the head.
Tool life in whirling is dominated by the interrupted nature of the cut. Every insert enters and leaves the material many times per second, and each entry cycles the edge through heating and cooling. Microscope work on interrupted face milling with CBN inserts by Malakizadi et al. (2013) identified thermal cracking as the main wear mechanism on the CBN edge, using scanning electron microscopy to examine worn inserts and finite-element modelling to separate the thermally and mechanically induced stresses on the tool edge. For whirling, the lesson is that edge failure under interrupted cutting is a thermal-fatigue problem as much as a hardness problem, which is why cutting speed — not just grade — is the first parameter to step down when chipping appears.
Setup geometry rides on top of drive behaviour. Sandvik Coromant's application tips sequence the setup explicitly: measure the offset of the cutting point against the swivel axis (they give the gauge procedure and the formula, offset = D/2 − H + I, from the drive shaft and insert-seat measurements), tilt the whirling unit to the screw's helix angle with the tool centred to the component, program the ring off-centre for the correct diameter, and rotate the ring and component in the same direction — climb milling — for optimum tool life. They also warn that many whirling units have a gear box reduction, so the programmed rpm is not the actual output; on a geared head, transmission ratios sit between the program and the cut.
Cutting Parameters from Measured Data
The parameters below are the measured window from peer-reviewed whirling experiments, not vendor catalogue claims. Merticaru et al. (2022) designed a 25-experiment matrix on trapezoidal threads and measured the resulting geometry and roughness; the numbers are useful precisely because they come with their conditions attached.
| Parameter | Measured value | Conditions (Merticaru et al., 2022) |
|---|---|---|
| Cutting speed | 88.7–229.2 m/min | 25-experiment matrix, C45 steel, four cutters |
| Whirling head speed | 614–1241 rpm | Paired with workpiece speeds of 2.4–3.76 rpm |
| Feed per tooth | 0.07–0.23 mm/tooth | Across the speed pairings tested |
| Flank roughness Ra | 0.5–3.2 µm | Measured along the flank profile in the axial plane |
| Lead-direction roughness Ra | 0.3–2.1 µm | Measured tangent to the thread lead helix |
| Ring tilt (simulation) | 2.95° | Trapezoidal thread, 40 mm diameter, 6 mm pitch |
Three readings of this table matter for machine work. First, the roughness band is wide — Ra 0.5–3.2 µm on the flank across the tested conditions — so a single-number finish claim for whirling is not a specification until its parameter set is stated. Second, the model work in the same paper shows the surface is generated by the whole set of cutters, which is why insert count and ring diameter ratio appear alongside speeds as input factors; changing any one of them re-determines the others' effect. Third, workpiece speeds of 2.4–3.76 rpm put the axis drive deep in low-speed territory, where the drive's smoothness — its transmission quality — is what separates a uniform thread from one with periodic marks.
When symptoms appear instead of numbers, the first checks are geometric and transmission-side rather than tool-side: the Thread Whirling Troubleshooting guide walks the common faults from that direction.
Machine Acceptance and What to Specify
Because the process cannot compensate afterwards for transmission error, acceptance is where transmission quality gets proven. The Chinese machine-tool standard JB/T 12606.3-2016, Technical conditions for thread whirling machines — Part 3, defines manufacturing and acceptance requirements for this machine class; it was issued on 2016-01-15 and took effect on 2016-06-01, and its declared scope covers machines with maximum workpiece diameters of 50–320 mm and maximum workpiece lengths of 1500–10000 mm. The scope line is practical at enquiry time: a machine whose capacity is declared inside that envelope is one the standard's acceptance regime was written for, and a part outside it needs its acceptance criteria agreed separately with the builder.
Acceptance questions worth asking any whirling machine builder follow directly from the behaviour above. Ask for the pitch verification over the full travel in the configuration the job will run, since feed-drive stiffness varies with position (Feng et al., 2023). Ask how the head drive is built — geared, belt-driven or direct — and what runout is guaranteed at the ring, since the head is both the speed source and a torsional element (Soshi et al., 2018). Ask what support spacing and follow-rest strategy the builder assumes for the length-to-diameter ratio of your part, because support layout, not insert selection, is what defends a slender screw against bending and vibration. A builder who tests against these questions is one whose acceptance record will show it; that record is the deliverable, not the brochure.
A Transmission Checklist for Long Thread Machining
The checklist below compresses this article into the order a job planner would use. Each line traces back to a published finding or the toolmaker's documented setup sequence rather than to rule of thumb.
| # | Check | Why it is on the list |
|---|---|---|
| 1 | Verify pitch over the full machining length, workpiece mass in place | Feed-drive stiffness varies with carriage position and workpiece mass (Feng et al., 2023) |
| 2 | Confirm support positions and follow-rest spacing for the part's length-to-diameter ratio | Long, slender parts hold thread quality only when support layout prevents bending and vibration (Sandvik Coromant) |
| 3 | Add damping at supports where the part is marginally stiff | Fixture damping changed workpiece dynamic response and process stability in machining tests (Ma et al., 2017) |
| 4 | Establish the head's actual output speed, including any gear reduction | Programmed rpm is not actual output on geared units (Sandvik Coromant) |
| 5 | Measure the cutting-point offset and set the ring tilt to the helix angle before first cut | Setup sequence and offset formula documented by Sandvik Coromant (O = D/2 − H + I) |
| 6 | Run the parameters inside the measured window first | 88.7–229.2 m/min and Ra 0.5–3.2 µm flank roughness bound the tested envelope (Merticaru et al., 2022) |
| 7 | When edge chipping appears, cut speed before changing grade | Interrupted cutting makes thermal cracking the main CBN wear mechanism (Malakizadi et al., 2013) |
| 8 | On hardened screws, plan for thermal deformation along the cut | Temperature field and thermal deformation characterised for whirled hard-milled ball screws (Song et al., 2022) |
Thread machining on whirling machines rewards exactly this order of attention: transmission first, geometry second, tooling third. If you have a long screw, rotor or worm shaft drawing and want a read on which machine class and setup would carry it, send it over via contact us and we will walk the checklist against your part.
References
- Influence of Machining Conditions on Micro-Geometric Accuracy Elements of Complex Helical Surfaces Generated by Thread Whirling — Merticaru V. et al., Micromachines 13(9):1520, 2022. Supports the measured parameter window, kinematics and four-cutter experiment description.
- Development of a directly-driven thread whirling unit with advanced tool materials for mass-production of implantable medical parts — Soshi M. et al., CIRP Annals 67(1):117–120, 2018. Supports the direct-drive head rationale and CBN/PCD versus carbide tooling context.
- 不同支撑方式的滚珠丝杠进给系统静/动刚度分析 — Feng et al., 制造技术与机床 Manufacturing Technology & Machine Tool 2023(11), 2023. Supports stroke-dependent feed-drive stiffness and support-arrangement behaviour.
- 旋风硬铣削加工技术及其在精密滚珠丝杠加工中的应用 — Song et al., 制造技术与机床 Manufacturing Technology & Machine Tool 2022(5):36–41, 2022. Supports whirl hard milling of precision ball screws and its thermal behaviour.
- Stability improvement and vibration suppression of the thin-walled workpiece in milling process via magnetorheological fluid flexible fixture — Ma J. et al., The International Journal of Advanced Manufacturing Technology 88:1231–1242, 2017. Supports fixture damping as a vibration-suppression lever.
- Wear mechanism of CBN inserts during machining of bimetal aluminum-grey cast iron engine block — Malakizadi A. et al., Procedia CIRP 8:188–193, 2013. Supports thermal cracking as the main CBN wear mechanism under interrupted cutting.
- Thread whirling — Sandvik Coromant knowledge base, accessed 2026. Supports the process definition, benefits for slender parts and typical components.
- Thread whirling application tips — Sandvik Coromant knowledge base, accessed 2026. Supports the setup sequence, offset formula, climb-milling direction and gear-reduction caution.
